WRF610SA Westinghouse 60cm Fixed Rangehood
The Westinghouse WRF610SA is a reliable, universal 60cm fixed rangehood finished in clean stainless steel, engineered for simple under-cabinetry or partial wall-mount installation. Utilizing a single 3-speed centrifugal fan setup to maintain an air extraction rate of 200m³/hr, this streamlined model effortlessly captures standard cooking vapors. Designed for universal utility, it supports dual top- or rear-ducting lines, optional un-ducted front recirculation, and features dishwasher-proof mesh filters for hassle-free maintenance.
Key Features
- 60cm fixed profile permanently mounts flat beneath upper cupboards or directly to the wall layout
- Single centrifugal fan motor drives a reliable maximum airflow volume of 200 m³/hr for standard daily cooking
- Mechanical inter-locked push button controls offer simple, dependable adjustment of fan settings
- 3 selectable fan speeds accurately match airflow power to your simmering or frying demands
- Front recirculation option effortlessly returns scrubbed air into the room when exterior brick ducting is restricted
- Dual top-exit or rear-exit pre-punched duct ports provide broad versatility during physical installation
- Two multilayer aluminum micromesh filters actively secure grease and fat residue from cooking plumes
- Dishwasher-safe filters slide out smoothly for quick clearing under standard appliance cycles
- Two pre-installed 28-watt halogen task downlights cleanly illuminate your workspace surface below
- Auto-thermal cut-out safety switch actively detaches power if a high-heat threshold error is reached
Extraction Configurations & Maintenance
This versatile fixed configuration adapts natively to existing architectural ventilation constraints in residential properties:
| Venting Architecture | Supports multi-directional external ducting pipelines or standalone room air recirculation |
| Duct Hole Options | Pre-engineered breakout slots located at both the top and rear surfaces of the structural frame |
| Air Recirculation | Front-recirculating venting built straight into the fascia (optional carbon filters are recommended) |
| Filtration Assemblies | 2 x Removable, washable multilayer aluminum mesh filter screens |
Technical Profiles & Acoustics
| Control Panel Layout | Mechanical, inter-locked front push button cluster |
| Motor Infrastructure | 1 x Single centrifugal fan extraction motor |
| Noise Output Level | 51 dBA on low-speed setting; climbs to 63 dBA at highest motor velocity |
| Grid Connection Profile | Standard 220V–240V, pre-fitted with a loose 10A plug & power cord lead |
| Safety Disconnect | Auto-thermal cut-out overload protection relay |

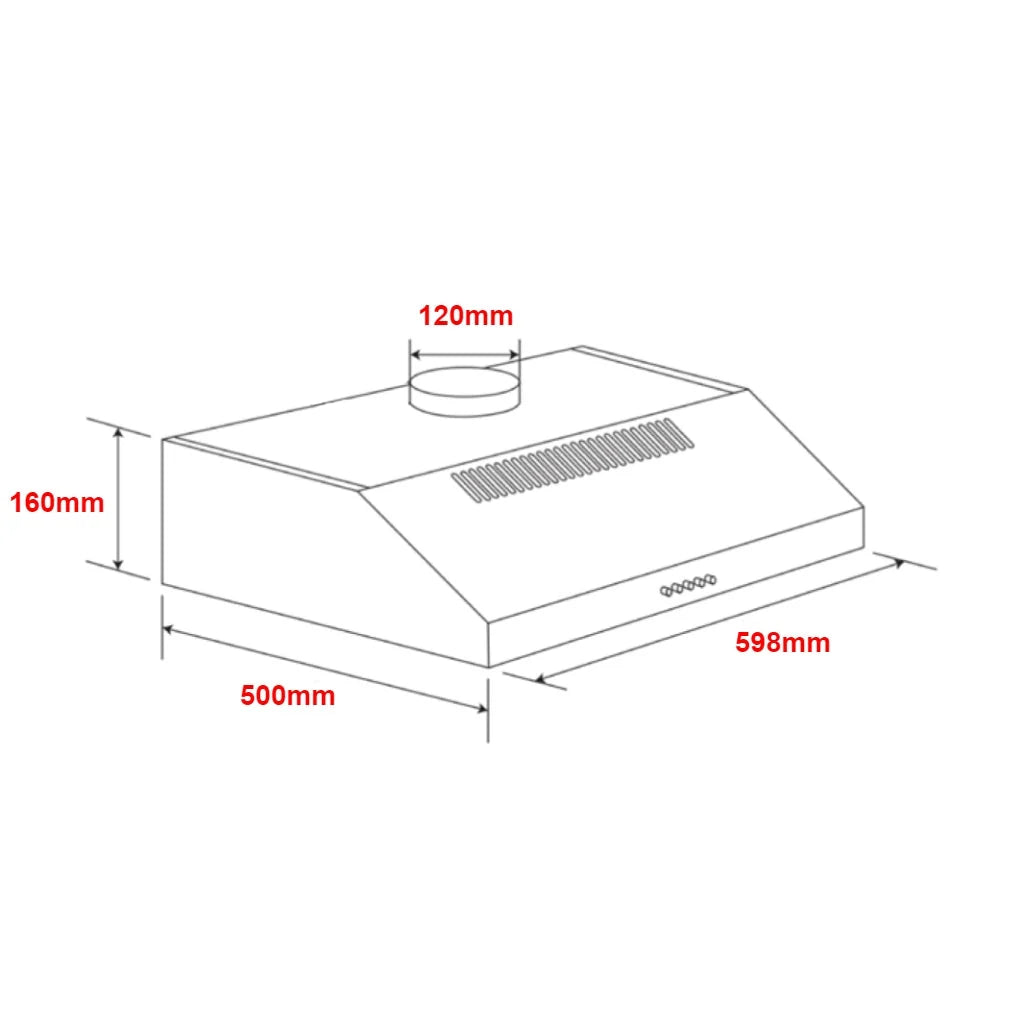

Design & Installation Dimensions
| Total Frame Height | 160 mm |
| Total Frame Width | 598 mm |
| Total Frame Depth | 500 mm |
| Duct Collar Diameter | 120 mm circular connection size |
| Clearance above Gas Hob | Minimum 650 mm installation clearance height |
| Clearance above Electric Hob | Minimum 600 mm installation clearance height |
| Cabinet Finish Material | Stainless Steel Body |
